€4,50
- Model:
- base plate
- Merk:
- Marpytoys
Omschrijving
Herkent u het oxidatieprobleem met de bodemplaat van uw Norev miniatuur zoals op de tweede foto?
Vanwege de slechte kwaliteit van zamac stelt Marpytoys een vervangende bodemplaat voor. De moeite die je moet doen:
- haal de modelauto uit elkaar
- plaats de wielen van het origineel onder de vervangbasis
- plaats de nieuwe bodemplaat
KLAAR!
Op aanvraag zijn er ook bodemplaten beschikbaar voor andere Norev modellen, bijvoorbeeld de Berlingo (derde afbeelding)
Mounting instruction Norev replacement base:
Recommended tools:
- Drill 1.8 mm
- Knife
- File
- Screwdriver
Versions:
- Berlingo-phase-2, unscrew the bottom plate and remove it with the interior section.

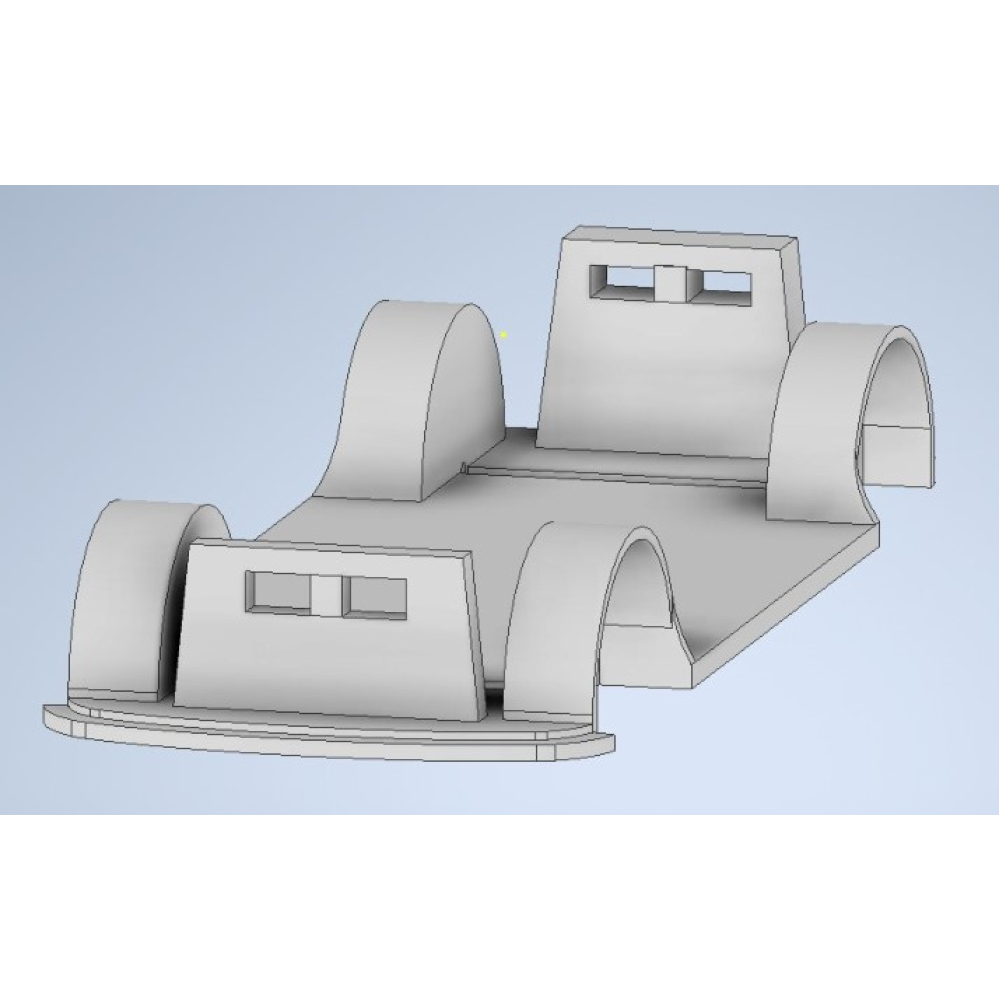

- Xsara Picasso, remove front-bumper and rear licence plate section. The bottom section should be free now.
Procedure:
1. Remove the wheels from the axes by turning them in reversed direction and gently pull.
2. Recover any additional sections from the old bottom plate, like exhaust.
3. Clean the new bottom plate for any printer-movement residue.
4. Fit and adjust if needed the overall size, by reducing the size with a file till it fits on all sides.
5. Check if bottom fits with interior section in place, adjust where needed.
6. With the new bottom in position, find the centre position of each wheel on the inner wing wheel arch. Drill with the 1.8 mm a hole on the found wheel position, as close to the floor as possible.
7. Reposition wheels and axes.
8. Reposition other parts, recovered from step 2.
9. For Berlingo: fix the bottom with the original screw to the body.
10. For Xsara Picasso: ensure the 2 body fixations on the new bottom is open. You might consider cutting the central locks of the front bumper/rear plate holder, so it fits directly. Some glue is recommended. Position bottom and lock it in place with the front bumper and rear plate holder.
PS. The material allows hard-plastic glue to be applied, if you want to add additional elements.

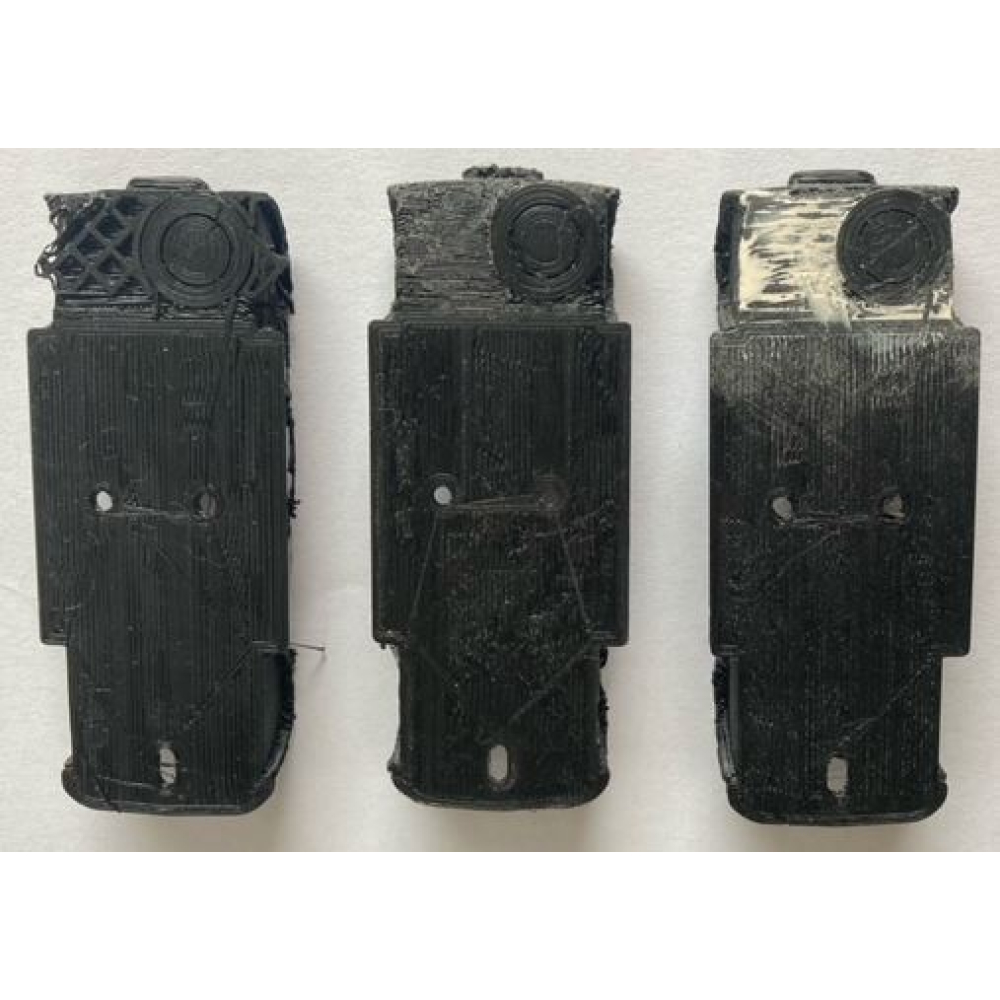

photo 4 Example from Berlingo base plate:
L -> R: printed with support, overhead removed, prepared for paint.
